Key Features
• 1200 cd/m² Brightness
• 5.5″ IPS Touchscreen Display
• DCI and UHD 4K Video Support
• HDMI Input and Output
• Headphone and Camera Control Ports
• 3D LUT Import via SD Card Slot
• Various Image Monitoring Tools
• L-Series Battery Plate, USB Type-C Port
• DC Input and Output Power Ports
• Sun Hood and Cold Shoe Mount Included

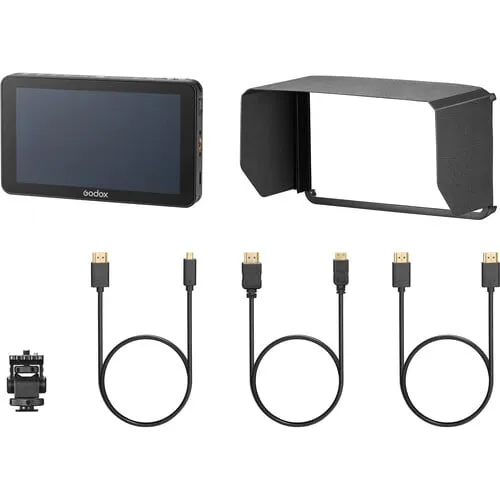

What’s In the Box
• Godox GM6S 4K HDMI Touchscreen Ultrabright On-Camera Monitor
• Sun Hood
• Tilting Cold Shoe Mount
• HDMI to HDMI Cable
• HDMI to Micro-HDMI Cable
• HDMI to Mini-HDMI Cable
• Screen Cloth
• Limited 2-Year Godox SA Warranty

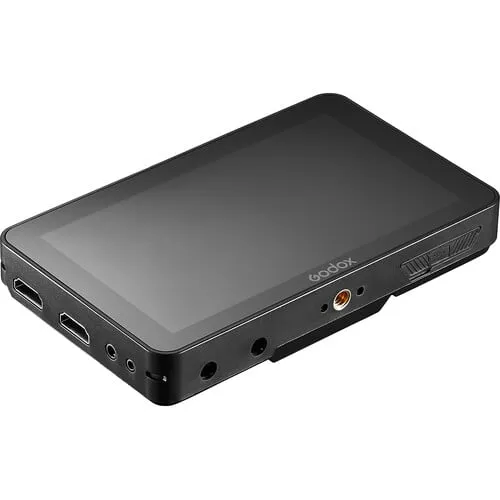

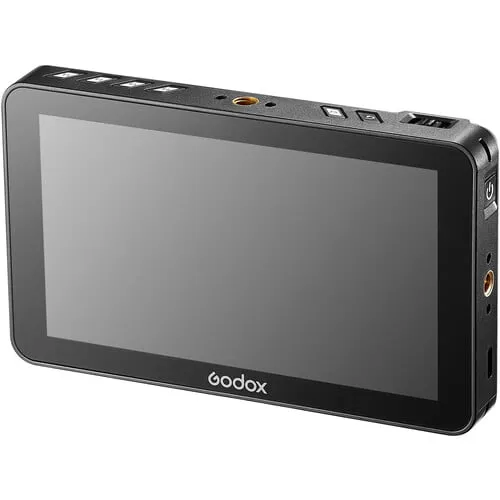

Godox GM6S Overview
Like its predecessor, the Godox GM6S On-Camera Monitor is a compact, 140cm device with a lightweight design, featuring an updated screen with 1200 cd/m² brightness. HDMI input and output to support both DCI and UHD 4K video. The camera control interface is available to communicate settings to the camera from the monitor with separately available proprietary cables. A 3.5mm headphone jack outputs audio for monitoring on set. Up to twenty-five 3D LUTS can be loaded into the monitor using the SD card slot.
Multiple function buttons can be configured to toggle between different settings and image monitoring tools. A single L-series battery plate, DC input, or USB Type-C port can power the monitor depending on your needs. The GM6S also has a DC output port to supply 7.8V of power to additional accessories. Included with the monitor is a sun hood to improve outdoor visibility and a cold shoe mount that attaches to any of the three 1/4″-20 threads.
Features at a Glance

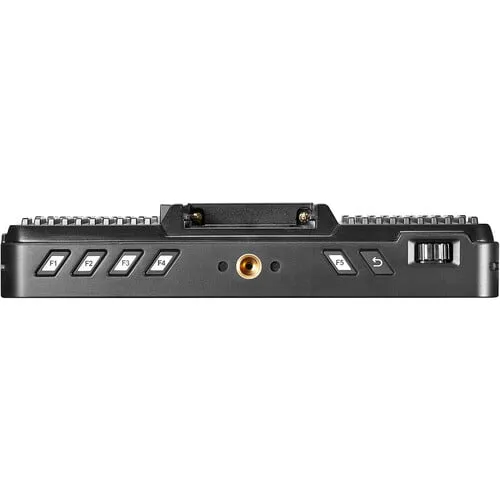

• Five function keys can be custom programmed to toggle between various settings
• Supports up to twenty-five 3D LUTs via SD card and compatible 17/32/33/64/65 cubic files
• DC power input, USB Type-C power input, and L-series battery plate
• Three 1/4″-20 mounting threads for accessories
• Rec.709 colour space
Image Monitoring Tools
• Focus assist
• Zebra
• Waveform
• LUT management
• Video aspect ratio
• Centre marker
• Safety marker
• Image flip
• Grid
• Audio meter
• False colours
• Monochrome
• Pixel-to-pixel
• Zoom
Godox GM6S Specs
Display
Panel Type IPS-Type LCD
Display Size 14.0 cm
Resolution 1920 x 1080
Aspect Ratio 16:9
Viewing Angle Horizontal: 160°
Vertical: 160°
Touchscreen Yes
Maximum Brightness 1200 cd/m2
Contrast Ratio 1000:1
Bit Depth / Colour Support 8-Bit (16.7 million Colours)
HDR Compatibility None
Pixels Per Inch (ppi) 400 ppi
Image Controls Focus Assist, Image Flip, Waveform, Zebra
I/O
Video 1 x HDMI Type A (HDMI 1.4) Input
1 x HDMI Type A (HDMI 1.4) Output
Embedded Audio HDMI
Audio 1 x 3.5 mm Headphone Output
Built-In Speaker None
Power I/O 1 x USB Type-C Input
1 x Barrel 5.5 mm (24 VDC) Input
1 x Barrel 5.5 mm (1.5 A / 7.8 VDC) Output
Other I/O 1 x 2.5 mm Input
Media/Memory Card Slot Single Slot: SD/SDHC
Wi-Fi None
Format Support
Video Format HDMI
DCI 4K: 30/29.97/25/24/23.98
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/50
720p: 60/50
576p: 60/50
576i: 60/50
Gamma Curve Rec709
Power
DC Input Power 7 to 24 VDC
Battery Type 1 x L-Series
Power Consumption 9 W
Mounting
Mounting 3 x 1/4″-20 Female
Environmental
Operating Temperature 14 to 122°F / -10 to 50°C
General
Material of Construction Metal, Plastic
Dimensions 14.5 x 8.7 x 2.8 cm
Weight 273 g
