Godox GM7S 4K HDMI Touchscreen Ultrabright On-Camera Monitor (18cm)

The GM7S from Godox combines a large screen with a peak brightness of 1200nit, allowing you to check the screen effortlessly to ensure prefect images. What’s more, with REC.709 colour calibration, fanless design, multiple options for power supply and a wealth of professional tools, the GM7S is an optimal solution for vloggers, YouTubers, filmmakers and more.

Key Features

• 7″ IPS HD Touchscreen Display
• 1200 cd/m² Brightness
• DCI and UHD 4K Video Support
• HDMI Input and Output
• Headphone and Camera Control Ports
• 3D LUT Import via SD Card Slot
• Various Image Monitoring Tools
• L-Series Battery Plates, USB-C Port
• DC Input and Output Ports
• Sun Hood and Cold Shoe Mount Included

Godox GM7S Overview

4K HDMI 7″ Ultra Bright Camera Monitor
To satisfy diversified demands and unlock endless creative opportunities for videographers, Godox keeps enriching the lineup of video solution systems. Now, we’re delighted to introduce our first 7″ monitor, the GM7S. It combines a large screen with a peak brightness of 1200nit, allowing you to check the screen effortlessly to ensure prefect images. What’s more, with REC.709 colour calibration, fanless design, multiple options for power supply and a wealth of professional tools, the GM7S is an optimal solution for vloggers, YouTubers, filmmakers and more.

Bigger Vision, Bigger World
The 7″ 1920×1200 screen ensures a larger and clearer view so that your eyes never miss any point of small details, taking you away from nightmares of flawed images caused by an unclear display. Moreover, with a viewing angle of 160 Degree H/160 Degree V, the GM7S is an ideal solution for a few more viewers to monitor at the same time.

Clearly Visible in Strong Sunlight
Featuring a peak brightness of 1200nit, the GM7S ensures a clear and accurate display, which is especially important when shooting outdoors. Don’t let strong sunlight get in the way of your creating.

REC.709 Colour Calibration
With REC.709 colour calibration, the GM7S guarantees high-fidelity images, which is the key to measuring the reliability of a monitor. What you see on the GM7S is what you get.

Custom 3D LUT Support
By loading up to 25 custom 3D LUTs into the GM7S via SD card, the instant preview greatly saves your time in post-production workflows. In addition to converting Log into REC.709, endless possibilities for creative footage are available at your fingertips.

No Fan, No Noise
The fanless design makes the GM7S completely silent, contributing to better application in sound-sensitive environments.

Rugged Metal Construction
The back housing made of robust metallic material can reliably protect the internal structure. In addition, the specialized design increases the surface area to provide better heat dissipation when working.

Camera Control Function
Using the adaptive camera control cable (optional), the GM7S can conveniently access the camera functions for enhanced efficiency, freeing you from swapping back and forth between the monitor and the camera.

Easy-to-use UI
Designed according to the user-friendly principle, the optimized UI enables you to fast access the frequently used functions, producing an easy, efficient, and enjoyable experience. Combining the large touchscreen with the scientific design, the GM7S offers users maximum usability and convenience.

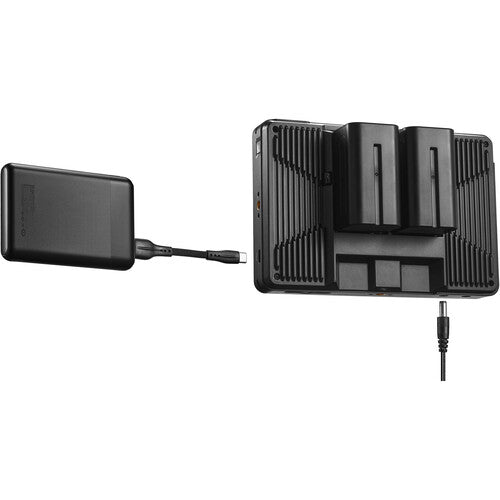

Power Anywhere
Providing three choices: DC, single or dual lithium battery, and Type-C power supply, the GM7S is never disconnected. What’s worth emphasizing is the Type-C power supply, an excellent solution for an emergency when shooting outdoors.

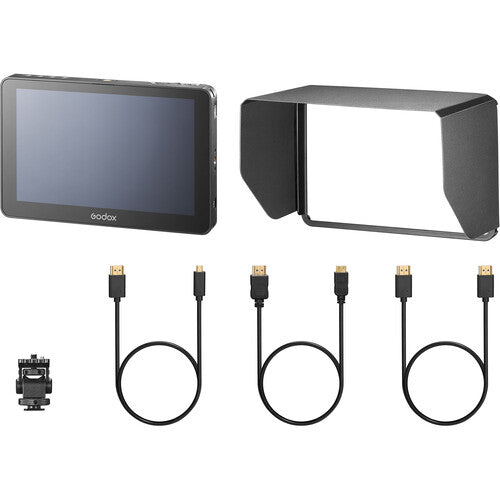

What’s In the Box

• Godox GM7S HD Ultra Bright Touchscreen On-Camera Monitor
• Sun Hood
• Cold Shoe Mount
• Standard HDMI to Mini Cable
• Standard HDMI to Micro Cable
• Standard HDMI to HDMI Cable
• Dustless Cloth
• User Manual
• Limited 2-Year Godox SA Warranty

Godox GM7S Specs

Display
Panel Type IPS-Type LCD
Display Size 17.8 cm
Screen Area 151.2 x 94.5 mm
Resolution 1920 x 1080
Aspect Ratio 16:10
Viewing Angle Horizontal: 160°
Vertical: 160°
Touchscreen Yes
Maximum Brightness 1200 cd/m2
Contrast Ratio 1000:1
Bit Depth / Colour Support 8-Bit (16.7 Million Colours)
HDR Compatibility Yes
Pixels Per Inch (ppi) 314 ppi
Real-Time LUT Monitoring HDR
Image Controls Focus Assist, Waveform, Zebra
Inputs / Outputs
Video I/O 1 x HDMI 1.4 Input
1 x HDMI 1.4 Output
Audio I/O 1 x 3.5 mm Headphone Output
Built-In Speaker None
Power I/O 1 x Barrel 5.5 mm (24 VDC) Input
1 x Barrel 5.5 mm (1.5 A / 7.8 VDC) Output
1 x USB-C Input
Media/Memory Card Slot Single Slot: SD/SDHC/SDXC
Wi-Fi None
Bluetooth None
Mobile App Compatible No
*As of January, 2023: Check with manufacturer for the most up-to-date compatibility
Format Support
Video Format HDMI
DCI 4K: 30/29.97/25/24/23.98
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/50
720p: 60/50
576p: 60/50
576i: 60/50
480p: 60/50
480i: 60/50
Gamma Curve Rec709
Power
DC Input Power 7 to 24 VDC
Battery Type 2 x L-Series
Power Consumption 10 W
Mounting
Mounting 3 x 1/4″-20 Female
Environmental
Certifications FCC Part 15 Class B, EU 2014/30/EU
*as per Manufacturer
Operating Temperature 14 to 122°F / -10 to 50°C
General
Material of Construction Metal, Plastic
Dimensions 18 x 12 x 3.1 cm
Weight 507 g
