Key Features
• 2500 to 8500K Colour Temperature
• 0 to 100% Brightness Dimming
• Built-In LCD Panel
• Integrated 3000mAh Lithium-Ion Battery
• 39 Light Effect Modes
• Onboard and Bluetooth App Control
• Magnetic Mounting, 1/4″-20 Thread
• Cold Shoe Mounting Base

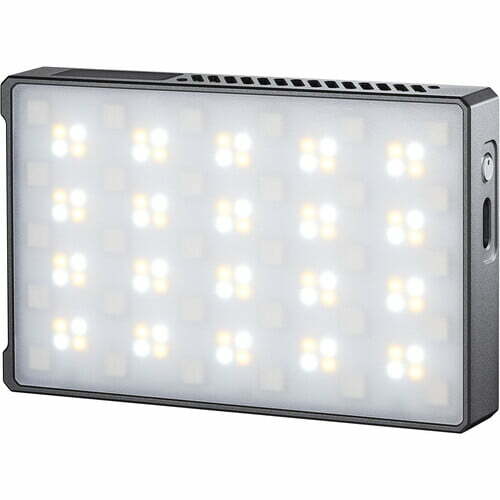

Godox Knowled C5R RGB Creative LED Light Overview
The Knowled C5R RGB Creative LED Light from Godox can add an ultra-compact fill light to your setup which will improve image quality. Colour temperature can be adjusted from 2500 to 8600K and brightness from 0 to 100% using the onboard controls or the Bluetooth app. The built-in LCD panel shows you which mode you’re in for intuitive control. 39 additional effects modes from fireworks to police car which will enhance your creative lighting choices.
The 3000mAh lithium-ion battery is integrated into the light, it can run for two hours and is rechargeable with the included USB Type-C cable in 2.5. A or via a wireless charging board. The 1/4″-20 thread at the bottom of the C5R allows for attachment to an articulating arm or you can use the included cold shoe mounting base. The magnetic back is another quick convenient mounting option.
Features at a Glance
• Built-in CCT, HSI, and effects modes

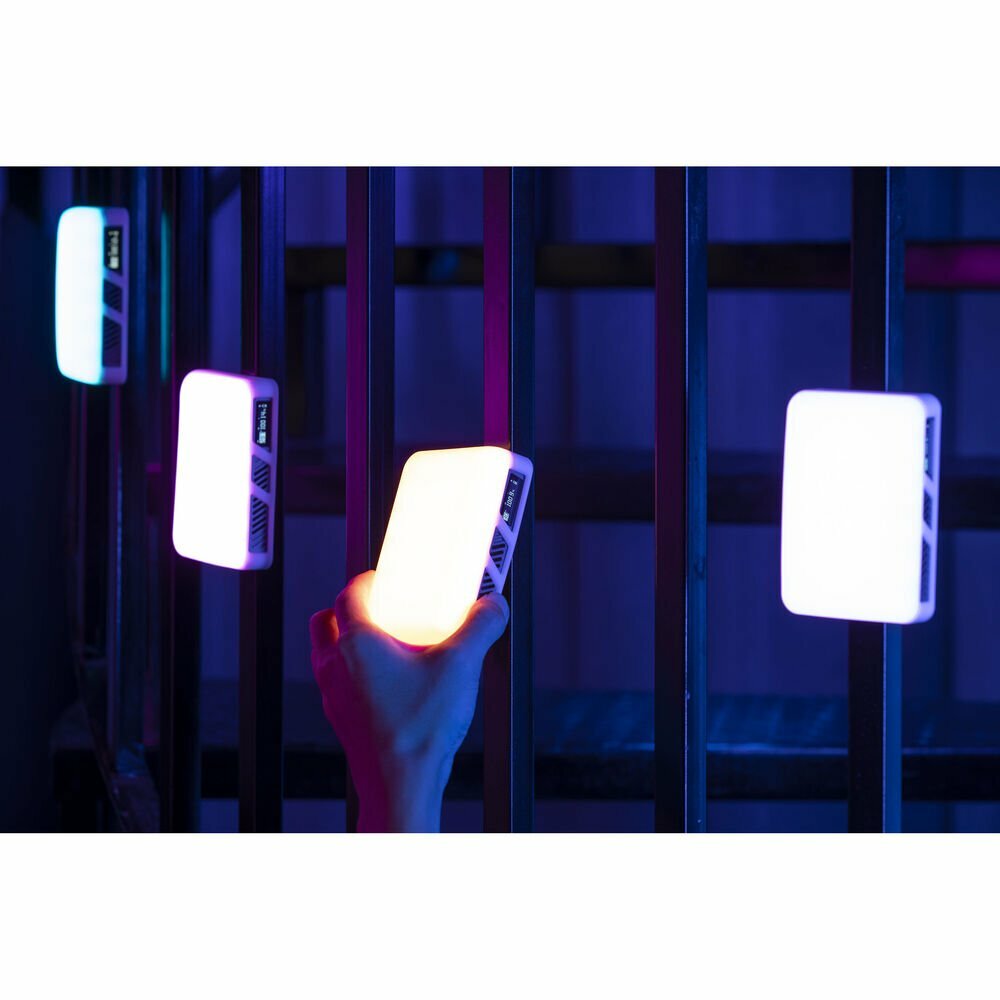

• Magnetic back panel for mounting to any metal surface
• 39 light effects
• 2000 lux at 1′

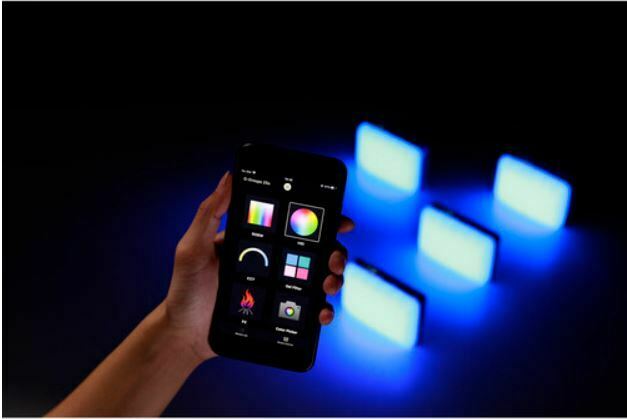

• Bluetooth app control
• CRI 96+ and TLCI 97 for natural colour reproduction
• Charge via USB Type-C in 2.5 hours, via wireless charger in 3.5 hours
• 3000mAh built-in lithium-ion battery works continuously for 2 hours at 100% brightness
• Includes cold shoe mounting base and collapsible diffuser

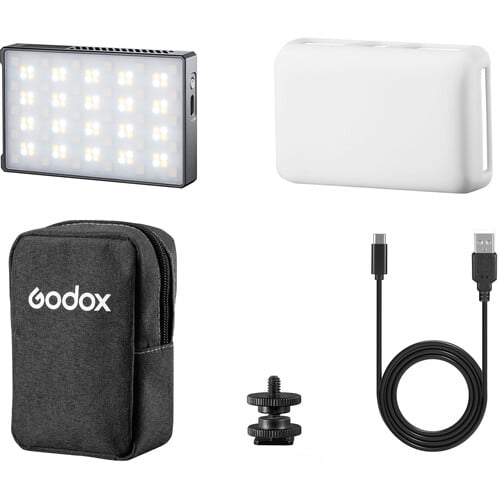

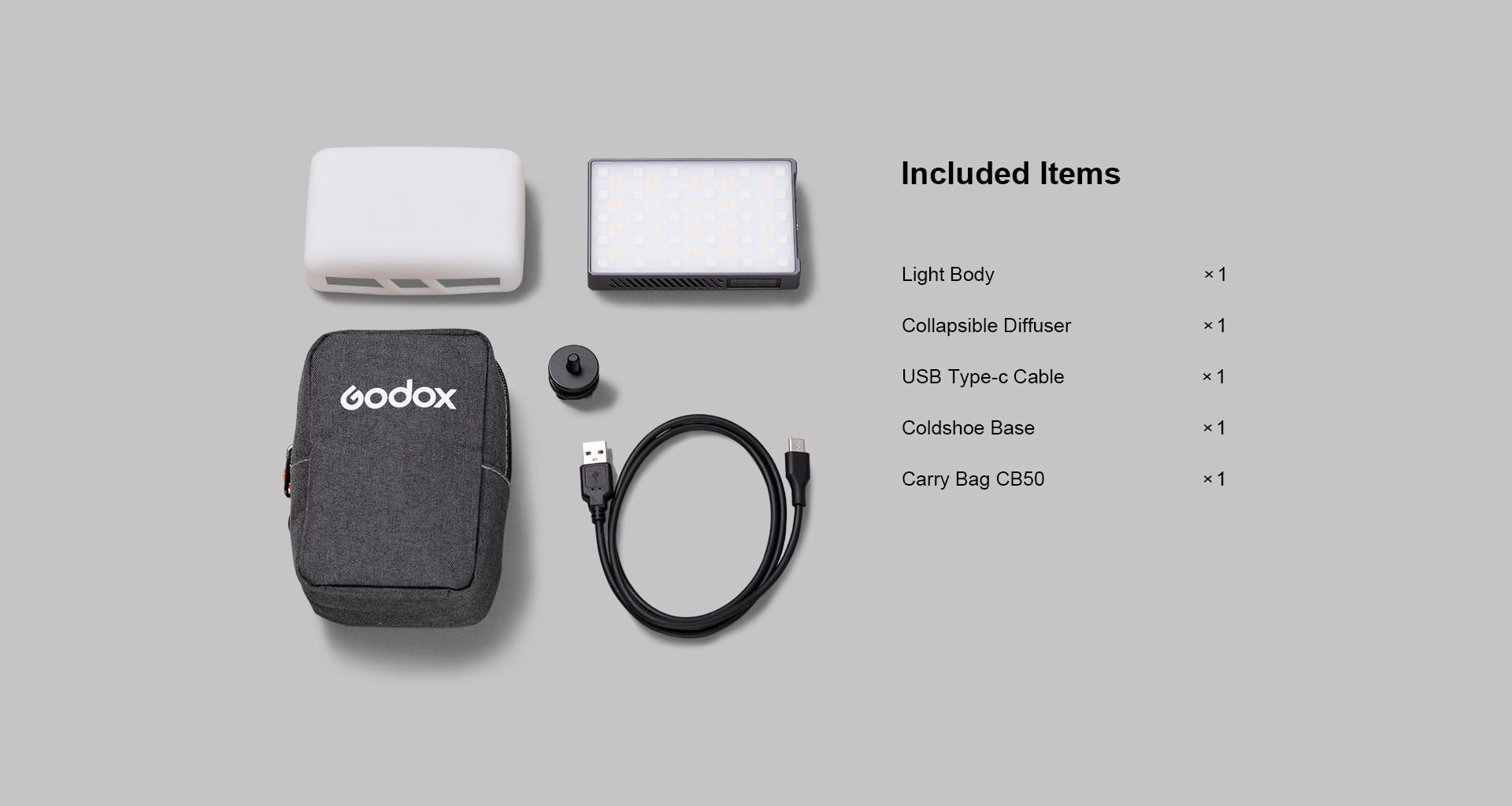

What’s in the Box
• Godox Knowled C5R RGB Creative LED Light
• Collapsible Diffuser
• USB Type-C Charging Cable
• Cold Shoe Base
• Carrying Bag
• Limited 2-Year Godox SA Warranty
Godox C5R Specs
Light Fixture
Item Type 1 x LED Light Panel
Included Storage Case 1 x Case
Lumens 2000 (at 6500K)
Photometrics 6500K
18 fc / 200 Lux at 3.3′ / 1 m*
70 fc / 760 Lux at 1.6′ / 0.5 m
185 fc / 2000 Lux at 1′ / 0.3 m
*Standardized Measurement Supplied by the Manufacturer
Colour Temperature 2500 to 8500K
Colour Modes Red, Green, Blue
Colour Accuracy Standard CRI 96
TLCI 97
Cooling System None
Dimming Yes, Built-In Dimmer
0 to 100%
Umbrella Mount No
Connectivity
App Compatible Yes: Android & iOS
App Name: Godox Light
Functionality: Adjust Settings, Remote Control
*As of September, 2022: Check with manufacturer for the most up-to-date compatibility
Power & I/O
Power Source Battery (Built-In)
Inputs/Outputs 1 x USB-C Power Input
Battery 1 x Rechargeable Lithium-Ion, 3000 mAh (Built-In)
• 2-Hour Runtime at 100% Brightness
• 2.5-Hour Charge Time via USB-C
• 3.5-Hour Charge Time
Battery Charging 1 x Charging Cable (Included)
Wireless Charger (Not Included)
DC Input Power 5 VDC at 2 A
5 VDC at 1 A
Included Adapter / Cable 1 x USB-C Male to USB-A Female Cable
Power Consumption 5 W (Maximum)
Mounting
Included Light Stand / Mount 1 x Mini-Stand Foot with Cold Shoe with Cold Shoe
Fixture Mounting 1 x 1/4″-20 Female Thread
Magnetic
Environmental
Water Resistance None
Operating Temperature 14 to 104°F / -10 to 40°C
General
Display None
Dimensions 10.6 x 6.8 x 1.8 cm
Weight 169 g
