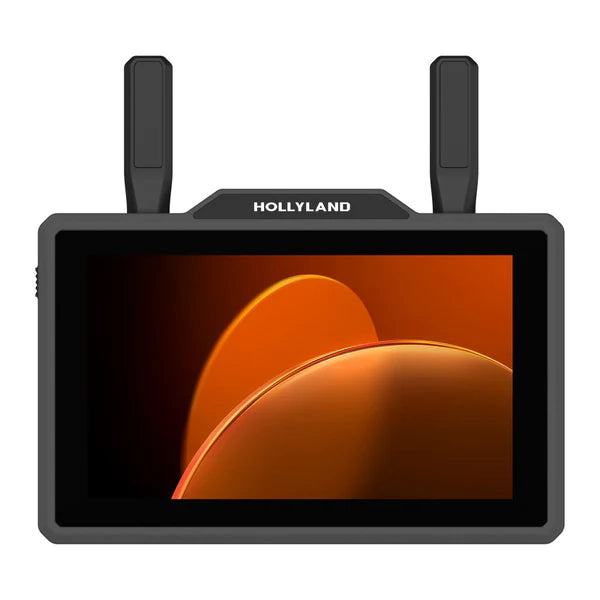

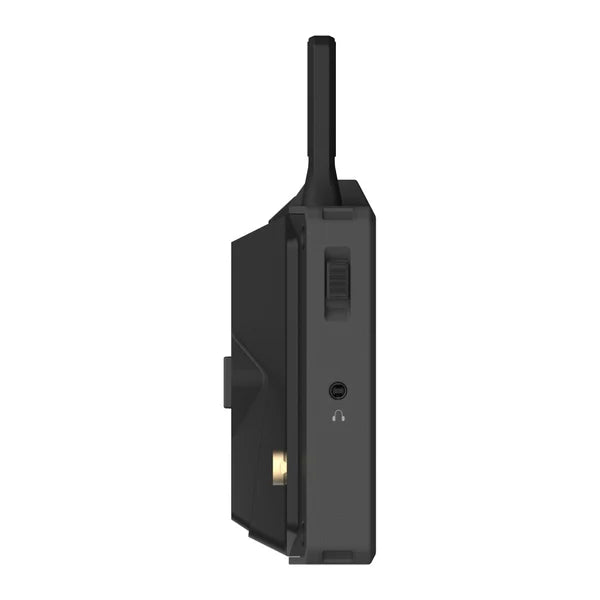

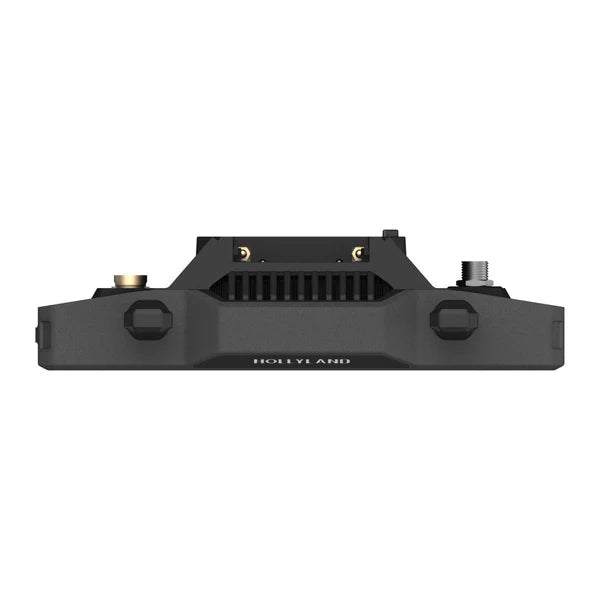

Hollyland Pyro 5 Wireless Transceiver Monitor

Hollyland Pyro 5 Wireless Transceiver Monitor

Forge a lighter, faster workflow

Built for mobile creators, the Hollyland Pyro 5 is the all-in-one powerhouse for gimbal operators and run-and-gun creators who demand portability without sacrificing performance. This rugged 5.5-inch monitor integrates a complete transmitter and receiver, giving you command over your video signal with the uncompromising range and low latency of a larger system, all streamlined into one compact package.

All-in-One Transceiver Innovation
The heart of the Pyro 5 is its integrated transceiver. With a single tap, switch the unit between a camera-top Transmitter (TX) or a handheld Receiver (RX). This incredible versatility means you can build a complete, adaptable wireless system with just two units, saving space, weight, and money.

Compact 5.5” Daylight-Viewable Display
Perfectly balanced for on-camera use, the 5.5-inch touchscreen delivers a razor-sharp Full HD (1920x1080) image. With a powerful 1000-nit peak brightness, the display cuts through harsh sunlight, providing a crystal-clear view of your shot without requiring a cumbersome sun hood.

Main features:

• Compact All-in-One Design: Functions as a monitor, transmitter (TX), or receiver (RX) in a lightweight 5.5-inch body.
• 5.5" Daylight-Viewable Screen: A sharp 1920x1080 touchscreen with 1500 nits of brightness.
• Pro-Grade Wireless: Massive 400m (1300ft) range with a virtually imperceptible 0.06s latency.
• Auto-Hopping Dual-Band Wi-Fi: Guarantees a rock-solid, interference-free signal.
• Professional I/O: Features both 3G-SDI and HDMI inputs and outputs for maximum compatibility.
• Full Monitoring Toolkit: Runs HollyOS with Waveform, 3D LUTs, Peaking, and more.
• Flexible Powering: Power via dual Sony NP-F (L-Series) batteries or a locking DC input.

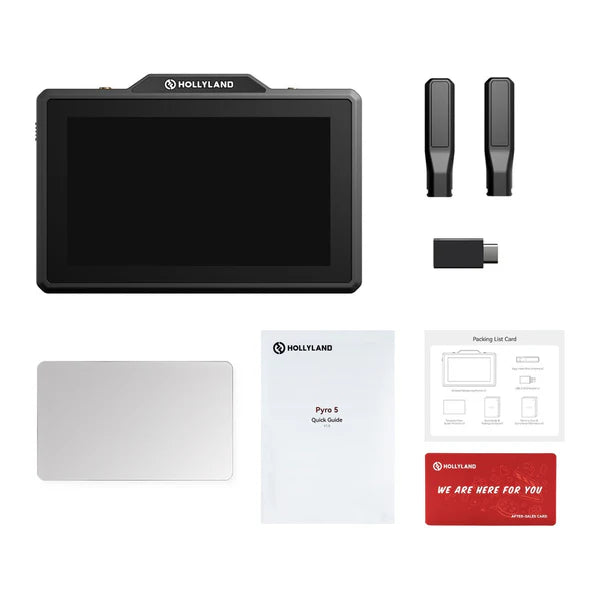

What's in the box:

• Pyro 5 Wireless Transceiver Monitor
• 2 x Paddle Antenna
• USB-C OTG Adapter
• Tempered Glass Screen Protector
• Limited 1-Year Manufacturer Warranty

Tech Specs:

• Display: 5.5-inch LCD Touchscreen
• Resolution: 1920 x 1080
• Brightness: 1500 nits
• Wireless Range: Up to 400m / 1300ft (Line-of-Sight)
• Latency: 60 ms (0.06s)
• Video I/O: 1 x 3G-SDI In & Loopout, 1 x HDMI 1.4b In & Loopout.
• Signal Support: Accepts all standard formats up to 1080p60 via both SDI & HDMI.
• Recording: Onboard H.264 recording to SD Card (up to 12 Mbps)

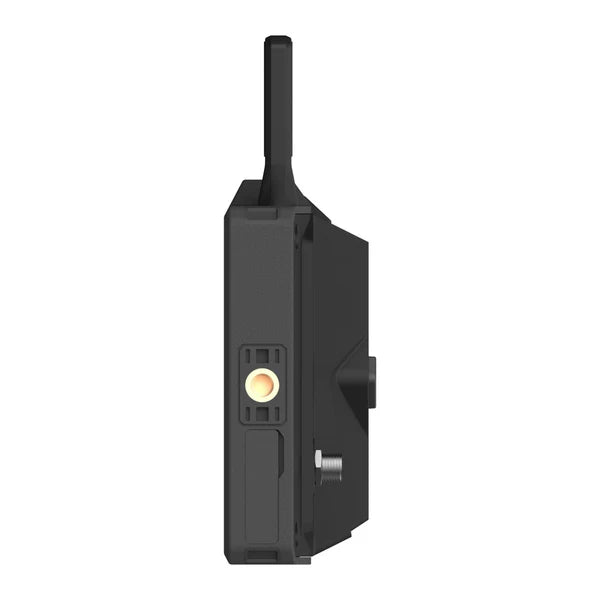

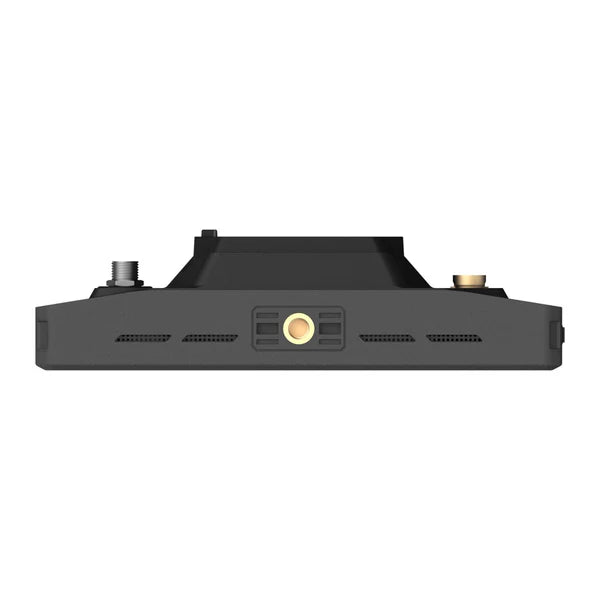

• Mounting: 3 x 1/4"-20 Female Sockets (Bottom, Left, Right)
• Dimensions: 151.6 x 102.3 x 40.5 mm
• Weight: 410g (Excl. Antennas)
