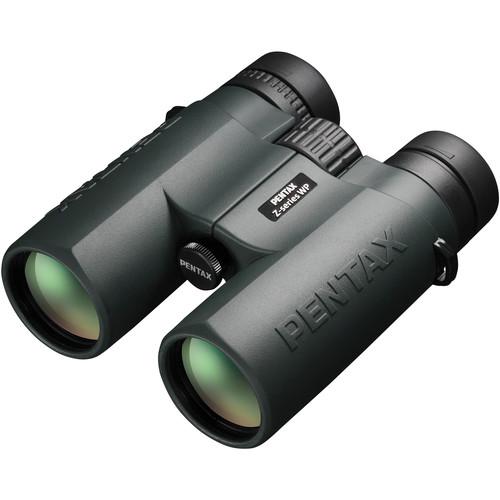

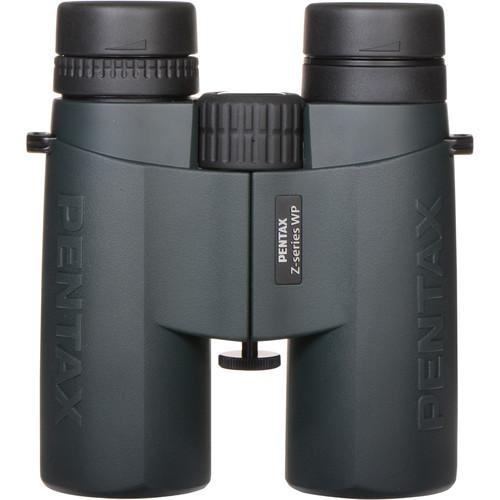

Pentax 8x43 Z-Series ZD WP Binocular
Pentax 8x43 Z-Series ZD WP Binocular
KAMERAZ
Kameraz, Stonemill Office Park
Darrenwood
Johannesburg
Gauteng
2195
South Africa
Choose options
Product Highlights
- Phase-Corrected BAK4 Roof Prisms
- Hybrid Aspherical Lens Elements
- Fully Multicoated Optics
- Angle of View: 50°
- Nitrogen-Filled, Water and Fogproof
- Closed Bridge Configuration
- Magnesium Alloy Chassis
- Knurled Center Focus Wheel
- Tripod Mountable
- Twist-Up Eyecups
Designed for nature enthusiasts and bird watchers, the Pentax 8x43 Z-Series ZD WP Binocular features multiple optical technologies to improve the image quality and ensure accurate colors in all weather and lighting conditions.
The image-enhancement starts with hybrid aspherical lens elements that eliminate distortion around the edges of the lens for clear edge-to-edge views and corrects lens astigmatism that can prevent the ability to bring subjects into sharp focus. Anti-reflection fully multicoated optics maximize light transmission through the entire optical path to make views appear bright and crisp, especially in low light. Finally, the BAK4 roof prisms are phase-corrected to enhance contrast and further correct chromatic aberration. These technologies work together to produce bright and clear high-contrast images with accurate colors and virtually no distortion.
Complementing the optical performance is a housing that is built for a lifetime of rugged outdoor use. The chassis is made of a lightweight and durable magnesium alloy with a rubberized armor that protects against impacts while providing a slip-resistant grip. The optical tubes are nitrogen filled for fogproof performance and O-ring sealed to make the binocular submersible to as much as 3.3'. An protective external lens coating helps to repel dust, water, and oil to ensure obstruction-free viewing. For longer glassing sessions, they are tripod mountable with an optional adapter.
- 8x magnification
- 43mm objective lenses
- BAK4 Roof prism optical path
- Anti-reflection fully multicoated optics
- Phase corrected prisms produce high-contrast images with true color rendition
- Hybrid aspherical lens elements correct for spherical aberrations to reduce distortion at the edges of the lens and corrects for astigmatism that can prevent sharp focusing
- 331' field of view at 1000 yards
- 50° angle of view
Use and Handling
- Closed bridge configuration
- Large knurled center focus wheel
- Right-eye diopter adjustment
- 22mm eye relief, 5.4mm exit pupil
- Twist-up eyecups for use with or without eye wear
- Tripod mountable with optional adapter
Construction Details
- Lightweight and durable magnesium alloy housing
- Rubberized armoring protects against impacts and provides slip-resistant grip
- Nitrogen-filled, fogproof and submersible to 3.3' (1m)
- Internal focusing system helps to maintain waterproof seals
- Dust/water/grease repellent coatings keeps the optical surfaces clean
