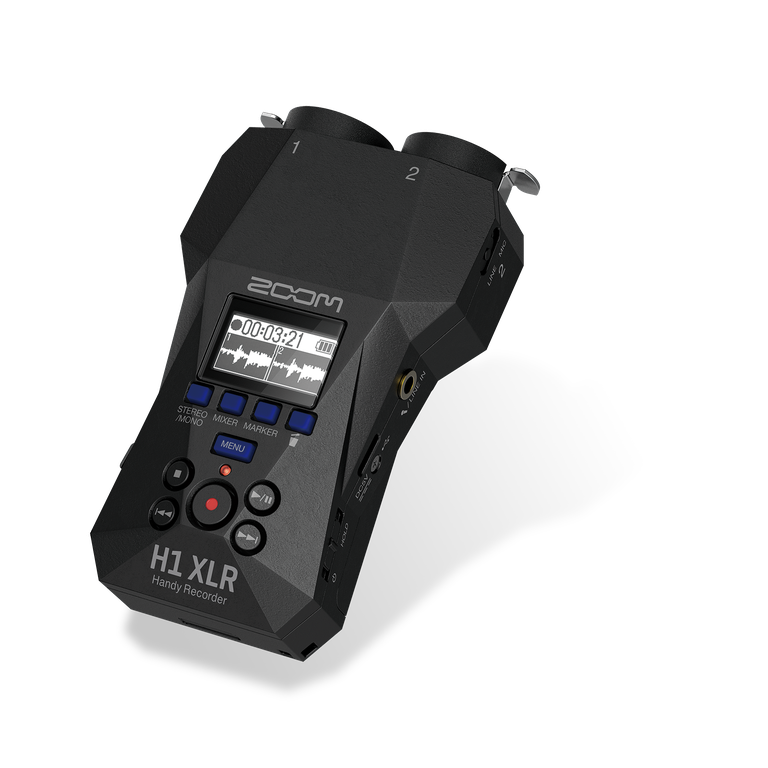

Zoom H1 XLR Two Track Audio Recorder
Input Flexibility
Equipped with two locking XLR/TRS combo inputs the H1 XLR is ready to record microphones, stereo board feeds, instruments and more.
The 3.5mm stereo input allows you to record on-camera mics, lavaliers, phones and other sources
Never Worry About Gain… Again
Plug in, hit record, and capture your audio worry-free. With 32-bit float and dual AD converters, the H1 XLR's vast dynamic range preserves details in both quiet and loud recordings.
Ultra-Clean Preamps
The H1 XLR’s preamps give you crystal clear audio with a -122dB EIN and sample rates up to 96khz.
Line Level Like a Pro
Capture +4dBu professional line level signals to record clip-free audio from any mixer or line output.
Stereo or Mono
The H1 XLR can record both stereo and mono files depending on your application.
Applications
Attention Musicians
Capture live band performances or DJ sets by taking a stereo feed from your mixing board.
Perfect On Camera
The H1 XLR is perfect for mounting on your rig to record great audio from shotgun or wireless mics.
The Sound Designer’s Companion
With 32-bit float recording, you can capture the roar of the loudest engines and the delicate whispers of nature in stunning quality.
Podcast Anywhere
Perfect Audio for your Mobile Video
Connect the H1 XLR to your mobile device via the USB-C port and record professional audio directly onto your phone's video. Perfect for video podcasts, live streams, and more.
32-bit Float Audio Interface
Connect to a PC, Mac, iOS, or Android device and use the H1 XLR as an audio interface while simultaneously recording to the SD card.
Specs
INPUTS
| MIC/LINE (mono) | Connectors | 2 XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT) |
|---|---|---|
| Input gain | Adjustment unnecessary (dual A/D converter circuits used) | |
| Input impedance | MIC: 2.7 kΩ or more | |
| LINE: 1 kΩ or more | ||
| Maximum input level | MIC: +4 dBu | |
| LINE: +24 dBu | ||
| Phantom power | +48 V | |
| Channel total 10 mA or less | ||
| Equivalent input noise | MIC: –122 dBu or less (IHF-A) at 150Ω input | |
| LINE: –100 dBu or less (IHF-A) at 600Ω input | ||
| MIC/LINE IN jack | Connector | Stereo mini jack |
| Input impedance | 2 kΩ | |
| Plug-in power | 2.5 V | |
OUTPUTS
| PHONE / LINE OUT jack | Connector | Stereo mini jack |
|---|---|---|
| Maximum output level | 20 mW + 20 mW (when 32 Ω load) | |
| Output impedance | 10 Ω or less | |
| Built-in speaker | Type | 20 mm × 30 mm elliptical dynamic speaker |
| Effective maximum output | 250mW | |
RECORDER
| Recording format | WAV |
|---|---|
| 44.1, 48 or 96 kHz / 32-bit float | |
| Stereo / Mono | |
| BWF and iXML formats supported | |
| Recording media | 4 – 32GB cards compatible with the microSDHC specification |
| 64GB – 1TB cards compatible with the microSDXC specification | |
DISPLAY
| OLED | 128 x 64 |
|---|---|
USB
| Connector | USB Type-C | |
|---|---|---|
| • Use a USB cable that supports data transfer. | ||
| Audio interface | USB Audio Class 1.0 | |
| Input and output channels | 2 in / 2 out (Stereo) | |
| Sampling frequencies | 44.1, 48 kHz | |
| Bit depths | 16-bit, 32-bit float | |
| File transfer | USB 2.0 High Speed | |
POWER
| 2 AA batteries | Alkaline, Lithium, or Rechargeable NiMH |
|---|---|
| AC adapter | ZOOM AD-17: DC 5 V/1 A |
| • USB bus power is supported. | |
ESTIMATED CONTINUOUS OPERATION TIME USING BATTERIES (Phantom Power OFF)
| Alkaline batteries | About 12 hours |
|---|---|
| NiMH batteries (1900 mAh) | About 11 hours |
| Lithium batteries | About 19 hours |
INPUT 1 and 2 recording at 48 kHz/32-bit float, phantom power off, no headphones, Power Save Time set to 1 minute
These values are approximate.
Continuous battery operation times were determined using in-house testing methods.
They will vary greatly according to use conditions.
ESTIMATED CONTINUOUS OPERATION TIME USING BATTERIES (Phantom Power ON)
| Alkaline batteries | About 4 hours |
|---|---|
| NiMH batteries (1900 mAh) | About 3 hours |
| Lithium batteries | About 9 hours |
INPUT 1 and 2 recording at 48 kHz/32-bit float, phantom power on (INPUT 1), no headphones, Power Save Time set to 1 minute
These values are approximate.
Continuous battery operation times were determined using in-house testing methods.
They will vary greatly according to use conditions.
| Power consumption | 2.5 W maximum |
|---|---|
| Dimensions | 62.1 mm (W) × 107 mm (D) × 39.3 mm (H) |
| Weight (including batteries) | 164 g |
Note: 0 dBu = 0.775 Vrms
