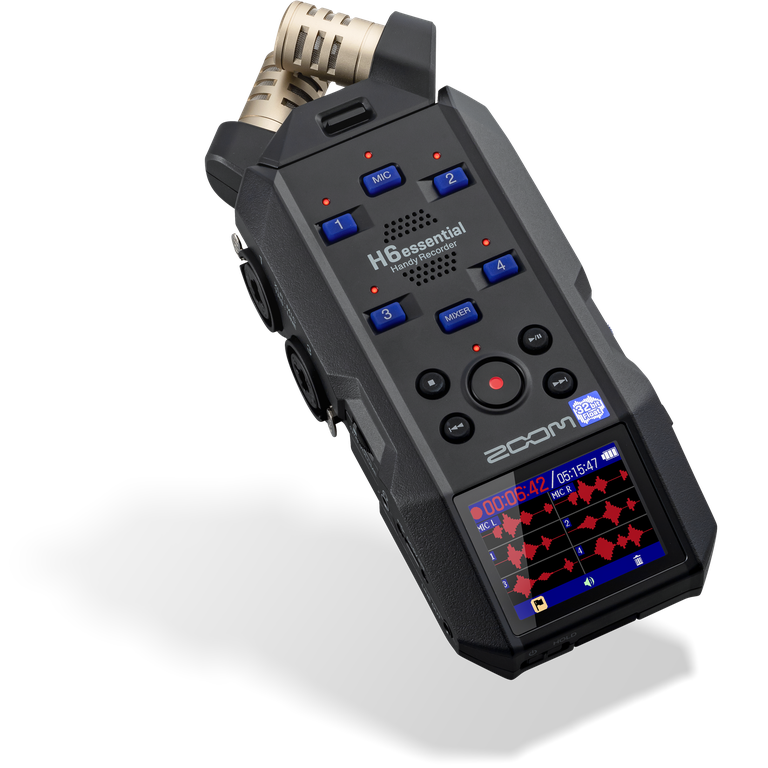

Zoom H6 Essential Handy Sound Recorder
Pickup currently unavailable at KAMERAZ
Zoom H6 Essential Handy Sound Recorder
KAMERAZ
Pickup currently unavailable
Kameraz, Stonemill Office Park
Darrenwood
Johannesburg
Gauteng
2195
South Africa
Choose options
Features and Specs
- 6-track 32-bit float recorder with Dual A/D Converters
- Clip-free recording with no need to set gain
- Records up to 96kHZ sample rate

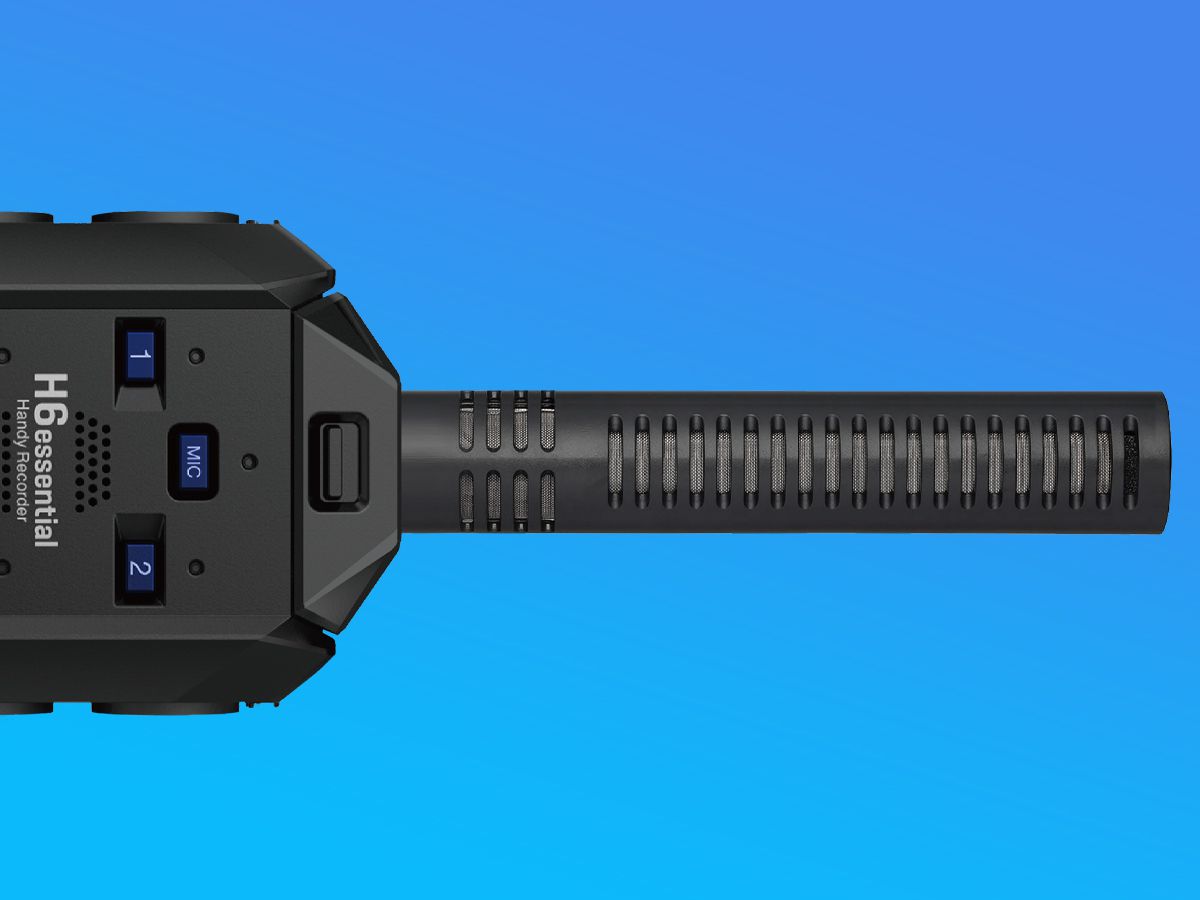

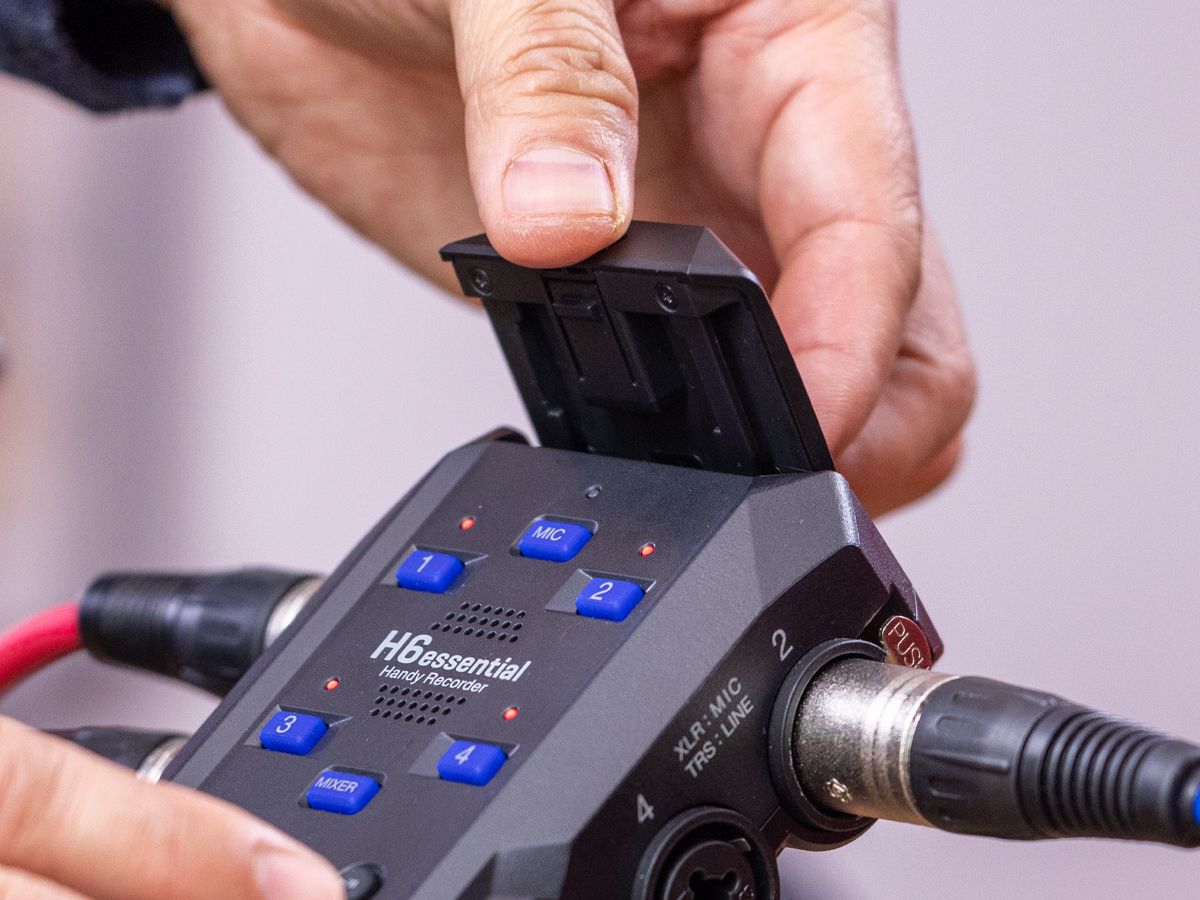

- Interchangable Mic Capsule System 3.0 with 32-bit float support
- Included X/Y Mic Capsule captures up to 135 dB SPL
- 4 XLR/TRS combo inputs with locking connector

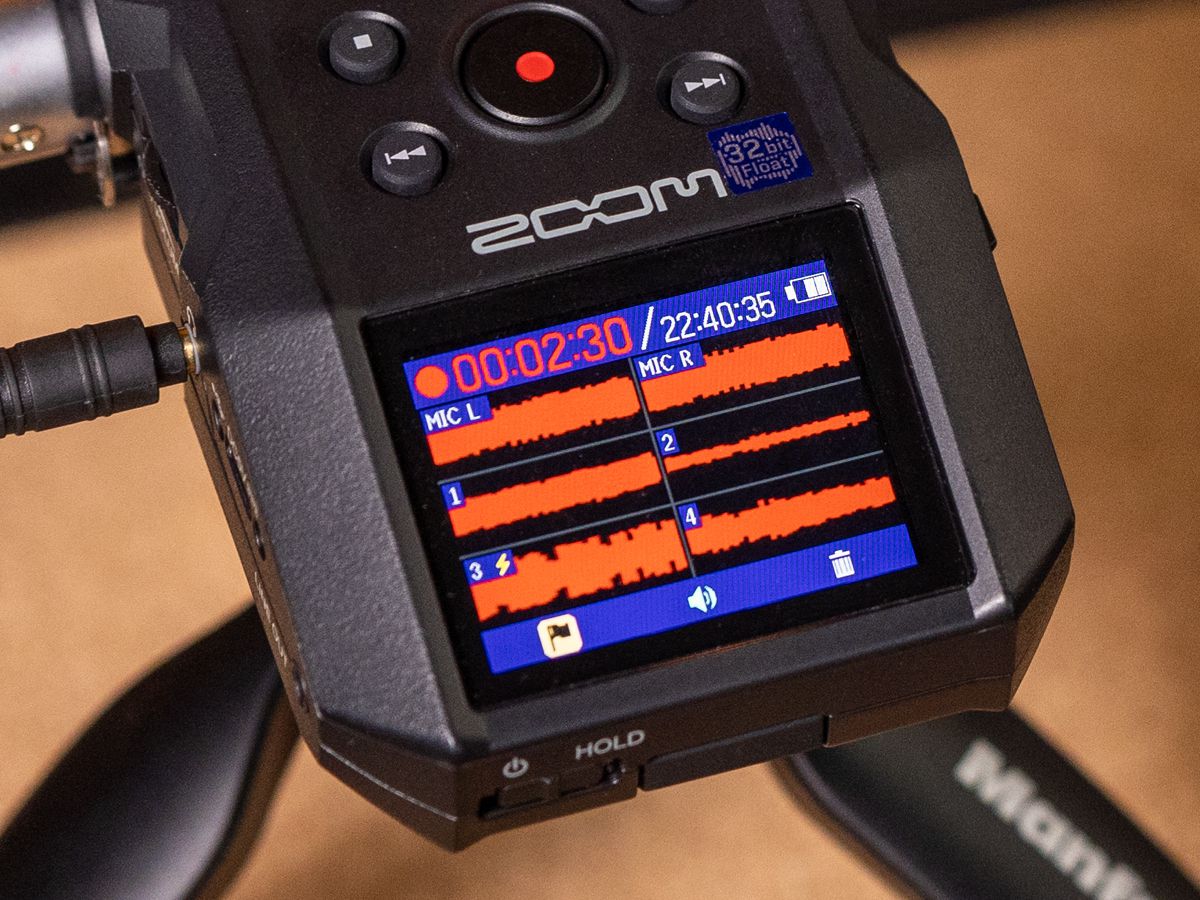

- Color LCD Screen
- Built-in mixer to adjust each track’s audio level
- Built-in speaker for quick reference playback
- 3.5mm headphone output plus 3.5mm line output
- Voice Guidance accessibility for the visually impaired

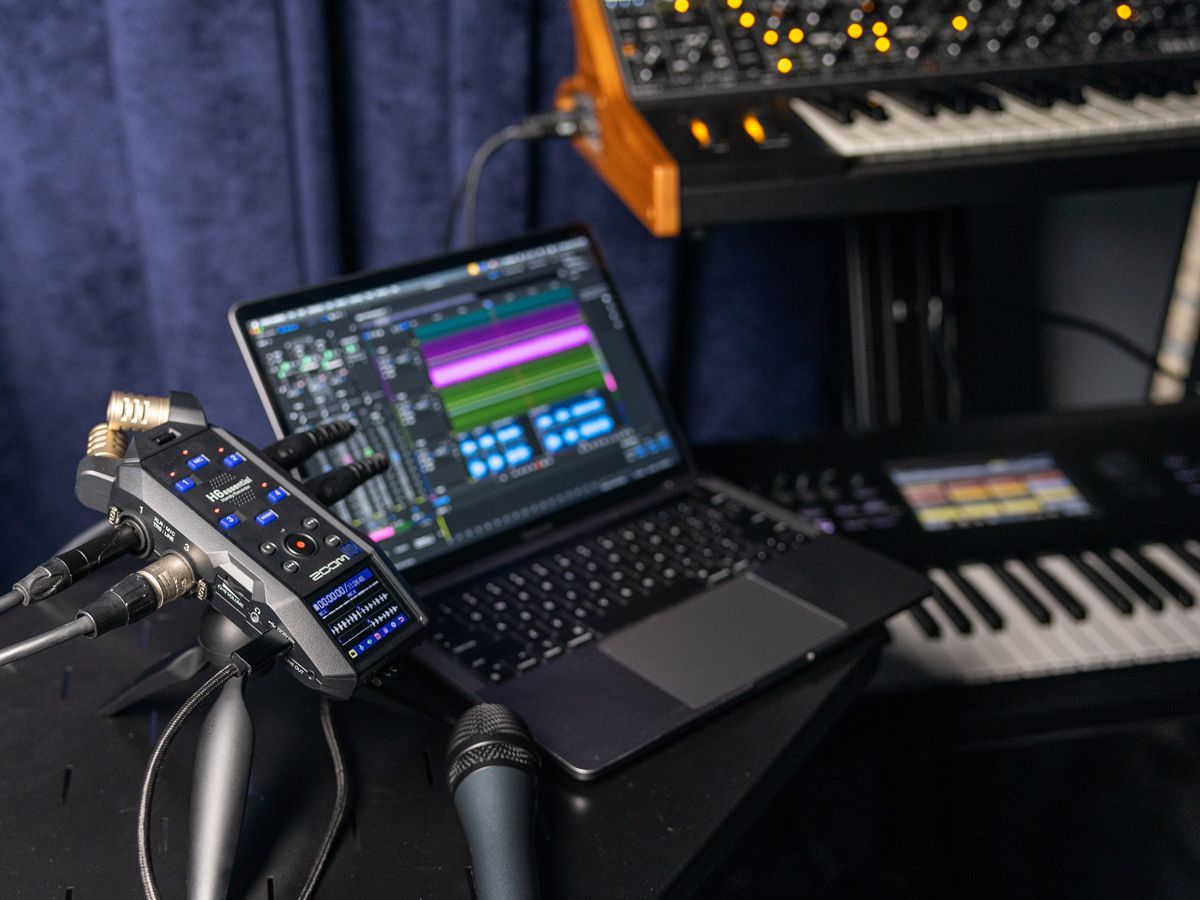

- 32-Bit Float audio interface for PC, Mac, iOS, and Android devices via USB-C port
- Use as an interface and record to SD card simultaneously
- Using the BTA-1* Bluetooth Adapter, sync with wireless timecode devices via bluetooth
- Use the BTA-1* Bluetooth Adapter to pair with the H6essential Control App for iOS
- Record to SD cards up to 1TB
- 10 hours of battery life on AA battery (4x) or USB-C Bus Power
*Please note: BTA-1 Adapter not included
Specs
INPUT AND OUTPUT CHANNELS
| Inputs | Mic capsule | 1 |
|---|---|---|
| MIC/LINE (mono) | 4 | |
| Outputs | LINE OUT | 1 |
| Headphones | 1 | |
| Built-in speaker (mono) | 1 | |
INPUTS

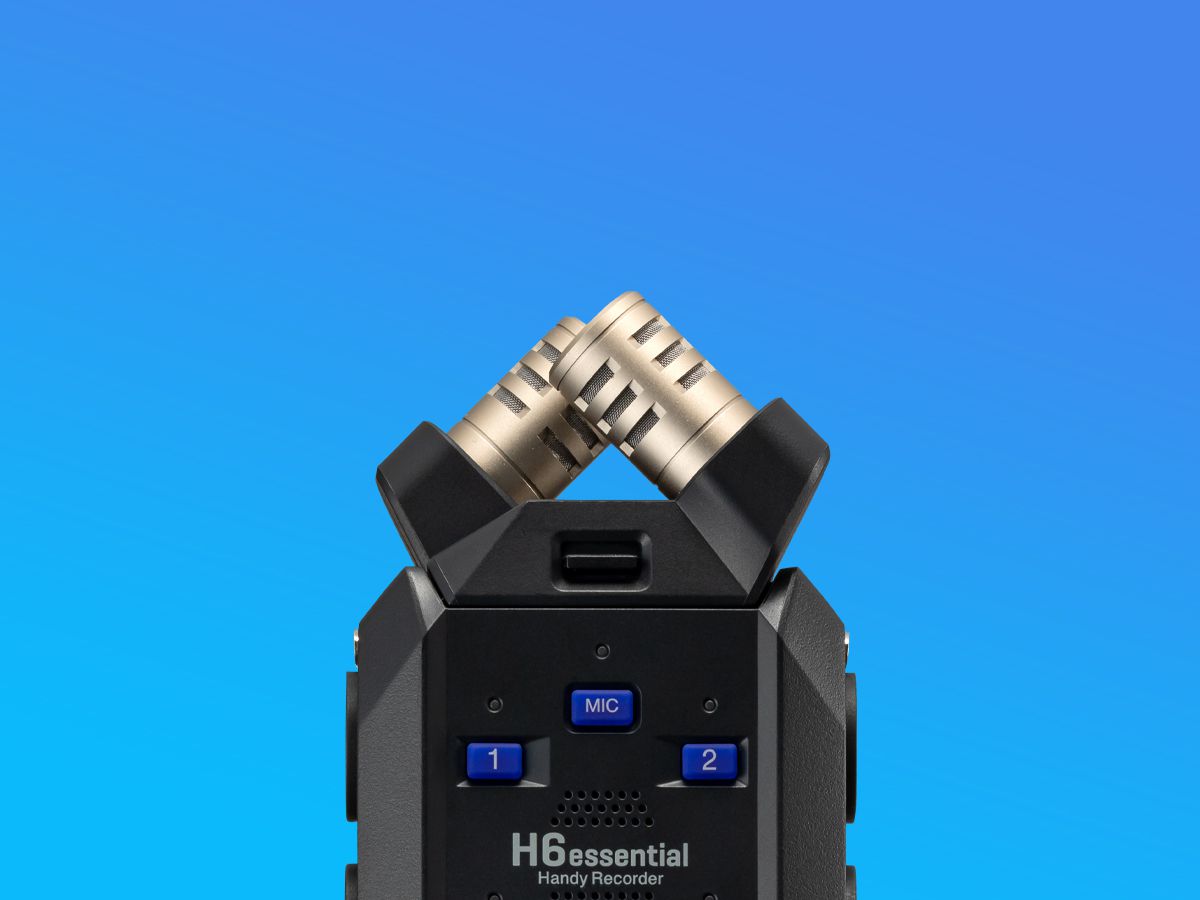

| XY mic: XYH-6e | 90º XY stereo format | |
|---|---|---|
| Directionality | Unidirectional | |
| Sensitivity | −42dB/1Pa at 1kHz | |
| Maximum sound pressure input | 135 dB SPL | |
| MIC/LINE (mono) | Connectors | 4 XLR/TRS combo jacks |
| (XLR：2 HOT TRS：TIP HOT） | ||
| Input gain | Adjustment unnecessary (dual A/D converter circuits used) | |
| Input impedance | MIC: 3.8 kΩ or more | |
| LINE: 39 kΩ or more | ||
| Maximum input level | MIC: +4 dBu | |
| LINE: +24 dBu | ||
| Phantom power | +48 V | |
| Channel total 32 mA or less | ||
| Equivalent input noise | MIC: -120 dBu or less（IHF-A) @150 Ω input | |
| LINE: -95 dBu or less（IHF-A) @600 Ω input | ||
OUTPUTS
| LINE OUT | Connector | Stereo mini jack |
|---|---|---|
| Maximum output level | +1 dBu | |
| Output impedance | 110 Ω or less | |
| Headphones | Connector | Stereo mini jack |
| Maximum output level | 20 ｍW + 20 ｍW（when 32 Ω load） | |
| Output impedance | 10 Ω or less | |
| Built-in speaker | Type | 20 mm x 30mm elliptical dynamic speaker |
| Effective maximum output | 250mW | |
RECORDER
| Maximum simultaneous recording tracks | 8 |
|---|---|
| Maximum simultaneous playback tracks | 6 |
| Recording formats | WAV |
| 44.1/48/96 kHz, | |
| 32-bit float mono/stereo | |
| BWF and iXML formats supported | |
| Recording media | 4-32GB cards compatible with the microSDHC specification |
| 64GB–1TB cards compatible with the microSDXC specification | |
DISPLAY
| 2.0-inch full-color LCD | 360 x 240 |
|---|---|
USB
| Connector | USB Type-C | |
|---|---|---|
| • Use a USB cable that supports data transfer. | ||
| Audio Interface | USB 2.0 High Speed | |
| Input and output channels | 6 in / 2 out (Multi) | |
| 2 in / 2 out (Stereo) | ||
| Sampling frequency | 44.1/48/96 kHz (AIF only) | |
| 44.1/48 kHz (AIF + onboard recording) | ||
| Bit depth | 24-bit, 32-bit float | |
| File transfer | USB 2.0 High Speed | |
REMOTE
| Dedicated wireless adapter | ZOOM BTA-1 |
|---|---|
POWER
| 4 AA batteries | Alkaline, lithium or rechargeable NiMH batteries |
|---|---|
| AC Adapter | ZOOM AD-17 (DC 5 V/1 A) |
| • USB bus power is supported. | |
ESTIMATED CONTINUOUS OPERATION TIMES USING BATTERIES : 2-track recording (XYH-6e)
| Alkaline batteries | About 18 hours |
|---|---|
| NiMH batteries (1900 mAh) | About 14.5 hours |
| Lithium batteries | About 30 hours |
48 kHz/32-bit float with phantom power off, no headphones, no LINE OUT, no REMOTE, Power Saving on, Display Brightness Medium
• These values are approximate.
• Continuous battery operation times were determined using in-house testing methods.They will vary greatly according to use conditions.
ESTIMATED CONTINUOUS OPERATION TIMES USING BATTERIES : 6-track recording (XYH-6e and inputs 1–4)
| Alkaline batteries | About 3.5 hours |
|---|---|
| NiMH batteries (1900 mAh) | About 4 hours |
| Lithium batteries | About 9 hours |
48 kHz/32-bit float with phantom power off, headphones used (33Ω load), no LINE OUT, no REMOTE, Power Saving on, Display Brightness Medium
• These values are approximate.
• Continuous battery operation times were determined using in-house testing methods.They will vary greatly according to use conditions.
| Power consumption | 5 W maximum |
|---|---|
| Dimensions | Recorder: 78.1 mm (W) × 160.1 mm (D) × 42.8 mm (H) |
| XYH-6e: 69.1 mm (W) × 50.8 mm (D) × 43.0 mm (H) | |
| Weight | Recorder: 381 g (including batteries) |
| XYH-6e: 42 g | |
Note: 0 dBu = 0.775 Vrms
